FMAD-T4QT-3060.US | SCHURTER
1-stage filter, 50 to 60 Hz, 30 A, 415 VAC, screw connection, FMAD-T4QT-3060.US
Not suitable for new designs, LTB: 03.30.2025
Unit Price (€ / pc.)
218.2936 € *
Available: 0 pcs.
Leadtime: 11 Weeks **

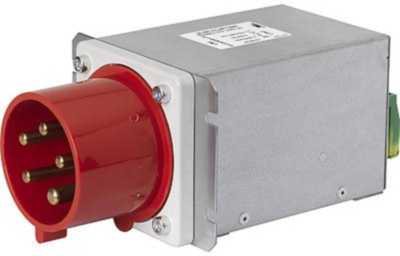

3-Phase AC/DC filter, FMAD-T4QT-3060.US, SCHURTER
The FMAD-T4QT-3060.US is a 1-stage filter for 3-phase system with neutral conductor. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- First CEE power entry module with EMC filter
- Easy prewired solution
- Universal flange for front or rear mounting
- Optimal filter position direct on the power entry
Applications
- Protection against interference voltage from the mains
- Possible interferences generated in the equipment are strongly attenuated
- Suitable for equipment with detachable power cord
Technical specifications
| Connection | screw connection | |
| Number of phases | 3 | |
| Version | 1-stage filter | |
| Rated Voltage | 415 VAC | |
| integrated switch | No | |
| max. frequency | 60 Hz | |
| max. operating temperature | 85 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -40 °C | |
| With fuse | No | |
| Rated current | 30 A |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
