FMBD-B92A-0812 | SCHURTER

2-stage filter, 50 to 60 Hz, 8 A, 520 VAC, 2 mH, terminal block, FMBD-B92A-0812

Order No.: 59P9253
EAN: 4099889074505
MPN:
FMBD-B92A-0812
Series: FMBD NEO
SCHURTER

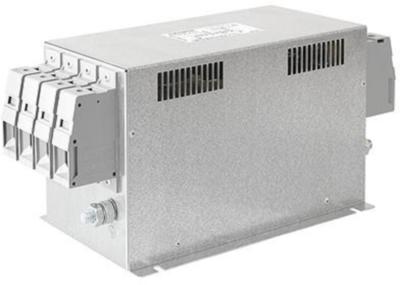

FMBD-B92A-0812 SCHURTER Interference suppression filter
Image may differ
Unit Price (€ / pc.)
94.8549 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
94.85 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
94.8549 €

3-Phase AC/DC filter, FMBD-B92A-0812, SCHURTER

The FMBD-B92A-0812 is a 2-stage filter for 3-phase system with neutral conductor. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Terminals for three phases, neutral conductor and ground
  • Especially designed for industrial application

Applications

  • Protection against interference voltage from the mains
  • Frequency converters
  • Stepper motor drive
  • UPS-System
  • Suitable for use in equipment
Technical specifications
Connection terminal block
Number of phases 3
Version 2-stage filter
Rated Voltage 520 VAC
Inductance per line 2 mH
integrated switch No
max. frequency 60 Hz
max. operating temperature 100 °C
min. frequency 50 Hz
min. operating temperature -25 °C
With fuse No
Rated current 8 A
Logistics
Country of origin CZ
Customs tariff number 85363010
MSL MSL 1
Original Packaging Carton with 2 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
