FMCC-H93E-Q052 | SCHURTER
3-stage filter, 50 to 60 Hz, 800 A, 520 VAC, 400 kW, bus bar, FMCC-H93E-Q052
Unit Price (€ / pc.)
1,325.422 € *
Available: 0 pcs.
Leadtime: 22 Weeks **

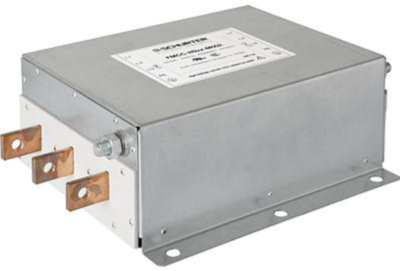

3-Phase AC/DC filter, FMCC-H93E-Q052, SCHURTER
The FMCC-H93E-Q052 is a 3-phase high current filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- High power filter
- Especially designed for high power application
Applications
- Frequency converters
- UPS-system
- Inverters for photovoltaic system
- Wind energy
- Suitable for use in equipment
Technical specifications
| Connection | bus bar | |
| Number of phases | 3 | |
| Version | 3-stage filter | |
| Rated Voltage | 520 VAC | |
| integrated switch | No | |
| Power | 400 kW | |
| max. frequency | 60 Hz | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -40 °C | |
| With fuse | No | |
| Rated current | 800 A |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
