FMW-65-0005 | SCHURTER
Suppressor filter, 50 to 60 Hz, 20 A, 275/480 VAC, 0.15 mH, faston plug 6.3 mm, FMW-65-0005
Unit Price (€ / pc.)
23.2169 € *
Available: 0 pcs.
Leadtime: 20 Weeks **

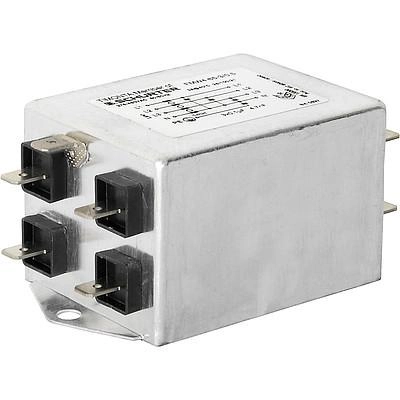

3-Phase AC/DC filter, FMW-65-0005, SCHURTER
The FMW-65-0005 is a compact 1-stage filter for 3-phase systems with neutral conductor. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Neutral conductor
- Especially designed for industrial application
Applications
- Frequency converters
- Stepper motor drive
- UPS-system
- Suitable for use in equipment
Technical specifications
| Connection | faston plug 6.3 mm | |
| Number of phases | 3 | |
| Version | 1-stage filter | |
| Rated Voltage | 275/480 VAC | |
| Inductance per line | 0.15 mH | |
| integrated switch | No | |
| Capacity X|Y | X2 100 nF, Y2 22 nF | |
| max. frequency | 60 Hz | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| With fuse | No | |
| Rated current | 20 A |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
