KMF0.2113.11 | SCHURTER

IEC plug C18, 50 to 60 Hz, 1 A, 250 VAC, faston plug 4.8 mm, KMF0.2113.11

Order No.: 59P9591
EAN: 4099889074994
MPN:
KMF0.2113.11
Series: KMF
SCHURTER

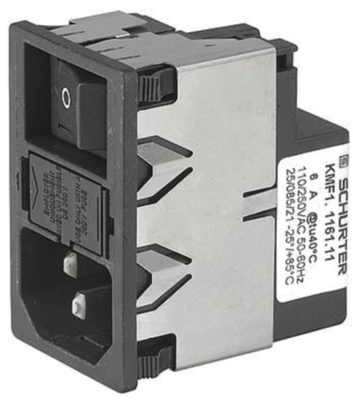

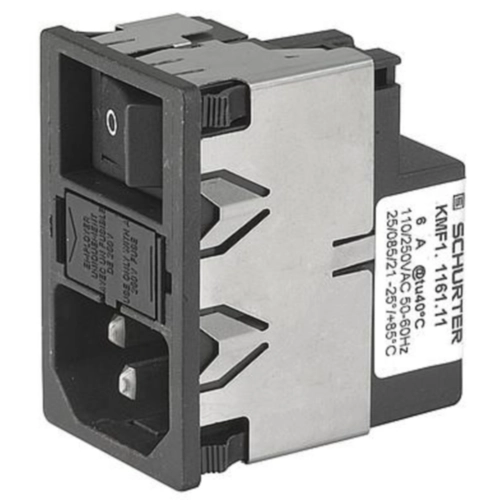

KMF0.2113.11 SCHURTER Interference suppression filter
Image may differ
Unit Price (€ / pc.)
27.0606 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
27.06 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
27.0606 €

IEC appliance inlet, KMF0.2113.11, SCHURTER

The KMF0.2113.11 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Most compact solution on the market
  • Innovative EMC-shielding
  • Easy and flexible snap-in mounting
  • Flexible steel segments for an excellent contact
  • Suitable for use in medical equipment
Technical specifications
ohmic resistance 1 MΩ
Connection faston plug 4.8 mm
Version IEC plug C18
Rated Voltage 250 VAC
integrated switch Yes
max. frequency 60 Hz
max. operating temperature 85 °C
min. frequency 50 Hz
min. operating temperature -25 °C
With fuse Yes
Rated current 1 A
Logistics
Country of origin CZ
Customs tariff number 85363010
MSL MSL 1
Original Packaging Carton with 20 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
