KMF1.1211.11 | SCHURTER
IEC plug C14, 50 to 60 Hz, 1 A, 250 VAC, 2 W, 11 mH, faston plug 4.8 mm, KMF1.1211.11
Unit Price (€ / pc.)
31.3565 € *
Available: 65 pcs.
Leadtime: 7 Weeks **
Total Price:
31.36 € *
Price list
Quantity
Price per unit*
1 pcs.
31.3565 €
5 pcs.
29.4763 €
20 pcs.
27.9650 €
40 pcs.
27.2272 €
160 pcs.
25.7040 €
*incl. VAT plus shipping costs
**Subject to prior sale

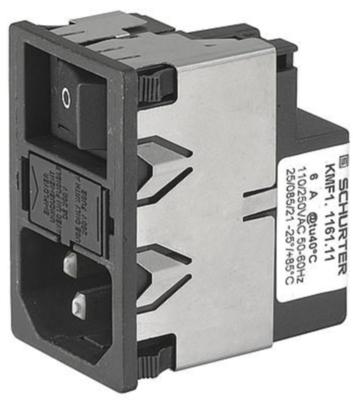

IEC appliance inlet, KMF1.1211.11, SCHURTER
The KMF1.1211.11 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Most compact solution on the market
- Innovative EMC-shielding
- Easy and flexible snap-in mounting
- Flexible steel segments for an excellent contact
- Suitable for use in medical equipment
Technical specifications
| Anschluss | Flachstecker 4,8 mm | |
| Ausführung | IEC-Stecker-C14 | |
| Bemessungsspannung | 250 VAC | |
| Induktivität pro Leitung | 11 mH | |
| integrierter Schalter | Yes | |
| Kapazität X|Y | X2 47 nF, Y2 2,2 nF | |
| Leistung | 2 W | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 85 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -25 °C | |
| Mit Sicherung | Yes | |
| Nennstrom | 1 A |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85363010 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
