KMF1.1221.11 | SCHURTER
IEC plug C14, 50 to 60 Hz, 2 A, 250 VAC, 2 W, 4 mH, faston plug 4.8 mm, KMF1.1221.11
Unit Price (€ / pc.)
21.7413 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

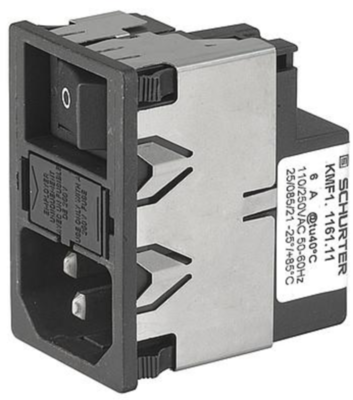

IEC appliance inlet, KMF1.1221.11, SCHURTER
The KMF1.1221.11 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Most compact solution on the market
- Innovative EMC-shielding
- Easy and flexible snap-in mounting
- Flexible steel segments for an excellent contact
- Suitable for use in medical equipment
Technical specifications
| Anschluss | Flachstecker 4,8 mm | |
| Ausführung | IEC-Stecker-C14 | |
| Bemessungsspannung | 250 VAC | |
| Induktivität pro Leitung | 4 mH | |
| integrierter Schalter | Yes | |
| Kapazität X|Y | X2 47 nF, Y2 2,2 nF | |
| Leistung | 2 W | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 85 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -25 °C | |
| Mit Sicherung | Yes | |
| Nennstrom | 2 A |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85363010 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
