0001.1005 | SCHURTER

Microfuses 5 x 20 mm, 1.25 A, F, 250 V (AC), 1.5 kA breaking capacity, 0001.1005

Order No.: 43G104
EAN: 4099889087918
MPN:
0001.1005
Series: SP 5x20
SCHURTER

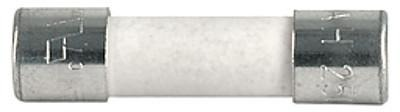

0001.1005 SCHURTER Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.1690 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
0.17 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5 pcs.
0.1690 €

Micro fuse, 0001.1005,SCHURTER

The 0001.1005 is a quick-acting cartridge fuse with that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.

Features

  • Material ceramic tube
  • Material endcaps copper alloy nickel-plated
  • High breaking capacity
  • Cartridge model

Applications

  • Primary protection in equipment
Technical specifications
Version microfuses
Tripping characteristics F
Breaking capacity 1.5 kA
Design 5 x 20 mm
diameter 5.2 mm
Enclosure ceramic tube
Length 20 mm
Rated voltage (AC) 250 V
Rated current 1.25 A
Logistics
Country of origin CN
Customs tariff number 85361010
Original Packaging Carton with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
