0001.1013.G | SCHURTER
Microfuses 5 x 20 mm, 8 A, F, 250 V (AC), 1.5 kA breaking capacity, 0001.1013.G
Unit Price (€ / pc.)
0.1833 € *
Available: 0 pcs.
Leadtime: 19 Weeks **

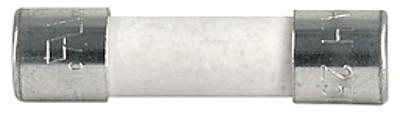

Micro fuse, 0001.1013.G, SCHURTER
The 0001.1013.G is a quick-acting miniature fuse with that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material tube ceramic
- Material endcaps copper alloy nickel-plated
- Quick-acting
- Cartridge model
Applications
- Primary protection in equipment
Technical specifications
| Ausführung | Feinsicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 1.5 kA | |
| Bauform | 5 x 20 mm | |
| Durchmesser | 5.2 mm | |
| Gehäuse | Keramikrohr | |
| Länge | 20 mm | |
| Nennspannung (AC) | 250 V | |
| Nennstrom | 8 A |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85361010 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
