0001.1015 | SCHURTER

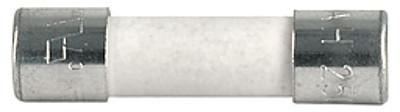

Microfuse 5 x 20 mm, 12.5 A, F, 250 V (AC), 1 kA breaking capacity, 0001.1015
Unit Price (€ / pc.)
0.2071 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Micro fuse, 0001.1015,SCHURTER
The 0001.1015 is a quick-acting cartridge fuse with that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material ceramic tube
- Material endcaps copper alloy nickel-plated
- High breaking capacity
- Cartridge model
Applications
- Primary protection in equipment
Technical specifications
| Ausführung | Feinsicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 1 kA | |
| Bauform | 5 x 20 mm | |
| Durchmesser | 5.2 mm | |
| Gehäuse | Keramikrohr | |
| Länge | 20 mm | |
| Nennspannung (AC) | 250 V | |
| Nennstrom | 12.5 A |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85361010 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
