0001.1016.G | SCHURTER
Microfuses 5 x 20 mm, 16 A, F, 250 V (AC), 1 kA breaking capacity, 0001.1016.G
Unit Price (€ / pc.)
0.4403 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
0.44 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4403 €
10 pcs.
0.3927 €
50 pcs.
0.3451 €
100 pcs.
0.2904 €
*incl. VAT plus shipping costs
**Subject to prior sale

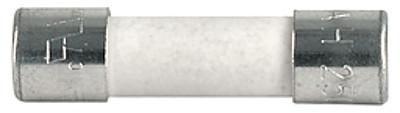

Micro fuse, 0001.1016.G, SCHURTER
The 0001.1016.G is a quick-acting miniature fuse with that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material tube ceramic
- Material endcaps copper alloy nickel-plated
- Quick-acting
- Cartridge model
Applications
- Primary protection in equipment
Technical specifications
| Version | microfuses | |
| Tripping characteristics | F | |
| Breaking capacity | 1 kA | |
| Design | 5 x 20 mm | |
| diameter | 5.2 mm | |
| Enclosure | ceramic tube | |
| Length | 20 mm | |
| Rated voltage (AC) | 250 V | |
| Rated current | 16 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85361050 |
| MSL | MSL 1 |
| Original Packaging | Carton with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
