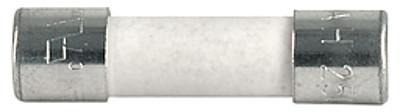

Name: Microfuses 5 x 20 mm, 1 A, T, 300 V (DC), 250 V (AC), 1.5 kA breaking capacity, 0001.2504.G
Brand: SCHURTER
SKU: 59P1053
Price: 0.16 EUR
Availability: OutOfStock

Microfuses 5 x 20 mm, 1 A, T, 300 V (DC), 250 V (AC), 1.5 kA breaking capacity, 0001.2504.G

Order No.: 59P1053

EAN: 4099889101584

MPN:

0001.2504.G

Series: SPT 5x20

Image may differ

Key Specification:

Version microfuses

Design 5 x 20 mm

Enclosure ceramic tube

Rated current 1 A

Tripping characteristics T

Show 14 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.1618 € *

Available: 0 pcs.

Leadtime: 20 Weeks **

Add to Cart

Total Price:

0.16 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Miniature fuse, 0001.2504.G, Schurter

Miniature Fuse, 5 x 20 mm, Time-Lag T, H, 250 VAC, UL: 115 V - 300 VDC

Applications

Primary Protection in Equipment
Power Supply Adapter for e.g. laptops
SMPS (Switching Mode Power Supply) for TV's and DVD's

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	CN
Customs tariff number	85361010
MSL	MSL 1
Original Packaging	Carton with 1,000 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

1 item in 14 variations

*incl. VAT plus shipping costs
