0001.2506 | SCHURTER
Microfuses 5 x 20 mm, 1.6 A, T, 300 V (DC), 250 V (AC), 1.5 kA breaking capacity, 0001.2506
Unit Price (€ / pc.)
0.3451 € *
Available: 1,030 pcs.
Leadtime: 7 Weeks **
Total Price:
3.45 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3451 €
50 pcs.
0.3094 €
100 pcs.
0.2630 €
500 pcs.
0.2380 €
1000 pcs.
0.2035 €
*incl. VAT plus shipping costs
**Subject to prior sale

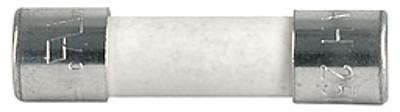

Micro fuse, 0001.2506,SCHURTER
The 0001.2506 is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material ceramic tube
- Material endcaps copper alloy nickel-plated
- High breaking capacity
- Cartridge model
Applications
- Primary protection in equipment
- Power supply adapter
- SMPS (Switching Mode Power Supply) for TV's and DVD's
Technical specifications
| Ausführung | Feinsicherung | |
| Auslösecharakteristik | T | |
| Ausschaltvermögen | 1.5 kA | |
| Bauform | 5 x 20 mm | |
| Durchmesser | 5.2 mm | |
| Gehäuse | Keramikrohr | |
| Länge | 20 mm | |
| Nennspannung (AC) | 250 V | |
| Nennspannung (DC) | 300 V | |
| Nennstrom | 1.6 A |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85361010 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
