0001.2523 | SCHURTER

Name: Microfuses 6.3 x 32 mm, 800 mA, T, 63 V (DC), 250 V (AC), 1.5 kA breaking capacity, 0001.2523
Brand: SCHURTER
SKU: 59P1095
Price: 2.00 EUR
Availability: OutOfStock

Microfuses 6.3 x 32 mm, 800 mA, T, 63 V (DC), 250 V (AC), 1.5 kA breaking capacity, 0001.2523

Order No.: 59P1095

EAN: 4099889102000

MPN:

0001.2523

Series: SPT 6.3x32

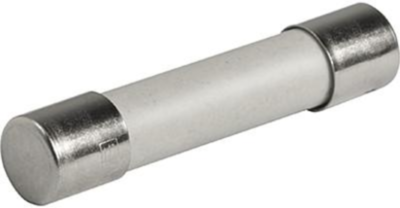

Image may differ

Key Specification:

Ausführung Feinsicherung

Bauform 6,3 x 32 mm

Gehäuse Glasrohr

Nennstrom 800 mA

Auslösecharakteristik T

Show 18 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.9992 € *

Available: 0 pcs.

Leadtime: 8 Weeks **

Add to Cart

Total Price:

2.00 € *

Price list

Quantity

Price per unit*

1 pcs.

1.9992 €

10 pcs.

1.7969 €

50 pcs.

1.6184 €

100 pcs.

1.4280 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Miniature fuse, 0001.2523, Schurter

Miniature Fuse, 6.3 x 32 mm, Time-Lag T, Sand, 250 VAC

Features

Available on request
H = High Breaking Capacity
UL Standard Fuse

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	FR
Zolltarifnummer	85361010
MSL	MSL 1
Originalverpackung	Karton mit 10 Stück

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes

1 item in 18 variations
