0001.2715.11 | SCHURTER
Microfuses 5 x 20 mm, 12.5 A, T, 125 V (DC), 250 V (AC), 500 A breaking capacity, 0001.2715.11
Unit Price (€ / pc.)
0.6426 € *
Available: 533 pcs.
Leadtime: 20 Weeks **
Total Price:
0.64 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6426 €
10 pcs.
0.5831 €
50 pcs.
0.5474 €
100 pcs.
0.5117 €
500 pcs.
0.4760 €
*incl. VAT plus shipping costs
**Subject to prior sale

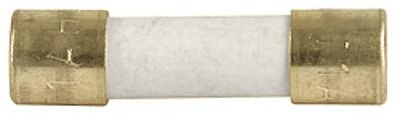

Micro fuse, 0001.2715.11,SCHURTER
The 0001.2715.11 is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material ceramic tube
- Material endcaps copper alloy gold-plated
- High breaking capacity
- PCB or SMT mountable
Applications
- Primary protection on SMD PCBs
Technical specifications
| Version | microfuses | |
| Tripping characteristics | T | |
| Breaking capacity | 500 A | |
| Design | 5 x 20 mm | |
| diameter | 5.2 mm | |
| Enclosure | ceramic tube | |
| Length | 20 mm | |
| Rated voltage (AC) | 250 V | |
| Rated voltage (DC) | 125 V | |
| Rated current | 12.5 A |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85361050 |
| Original Packaging | Blister with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
