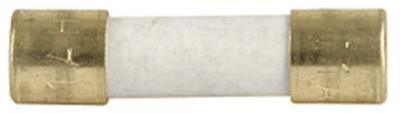

Name: Microfuses 5 x 20 mm, 16 A, T, 125 V (DC), 250 V (AC), 500 A breaking capacity, 0001.2716.22
Brand: SCHURTER
SKU: 59P1127
Price: 0.62 EUR
Availability: OutOfStock

Microfuses 5 x 20 mm, 16 A, T, 125 V (DC), 250 V (AC), 500 A breaking capacity, 0001.2716.22

Order No.: 59P1127

EAN: 4099889102291

MPN:

0001.2716.22

Series: SMD-SPT

Image may differ

Key Specification:

Ausführung Feinsicherung

Bauform 5 x 20 mm

Gehäuse Keramikrohr

Nennstrom 16 A

Auslösecharakteristik T

Show 13 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.6188 € *

Available: 0 pcs.

Leadtime: 7 Weeks **

Add to Cart

Total Price:

0.62 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Surface mount fuse, 0001.2716.22, Schurter

Surface Mount Fuse, 5 x 20 mm, Time-Lag T, H, 250 VAC, Au plating

Features

Directly solderable on printed circuit boards
IEC Standard Fuse
H = High Breaking Capacity

Applications

Primary protection on SMD PCBs

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	IN
Zolltarifnummer	85361010
MSL	MSL 1
Originalverpackung	Blister mit 1.000 Stück

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes

1 item in 13 variations
