0034.1524 | SCHURTER
Microfuses 5 x 20 mm, 6.3 A, F, 250 V (AC), 63 A breaking capacity, 0034.1524
Unit Price (€ / pc.)
0.3213 € *
Available: 330 pcs.
Leadtime: 20 Weeks **
Total Price:
0.64 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3213 €
10 pcs.
0.2808 €
50 pcs.
0.2475 €
100 pcs.
0.2178 €
*incl. VAT plus shipping costs
**Subject to prior sale

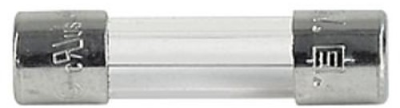

Micro fuse, 0034.1524, SCHURTER
The 0034.1524 is a quick-acting miniature fuse with that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material tube glass
- Material endcaps copper alloy nickel-plated
- Quick-acting
- Cartridge model
Applications
- Primary protection in equipment
Technical specifications
| Version | microfuses | |
| Tripping characteristics | F | |
| Breaking capacity | 63 A | |
| Design | 5 x 20 mm | |
| diameter | 5.2 mm | |
| Enclosure | glass tube | |
| Length | 20 mm | |
| Rated voltage (AC) | 250 V | |
| Rated current | 6.3 A |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85361010 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
