0034.2518 | SCHURTER
Microfuse 5 x 20 mm, 1.6 A, M, 125 V (DC), 250 V (AC), 1 kA breaking capacity, 0034.2518
Unit Price (€ / pc.)
0.4641 € *
Available: 690 pcs.
Leadtime: 7 Weeks **
Total Price:
0.46 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4641 €
10 pcs.
0.4165 €
50 pcs.
0.3808 €
100 pcs.
0.3451 €
*incl. VAT plus shipping costs
**Subject to prior sale

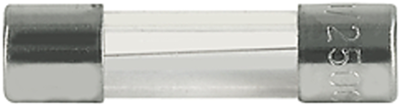

Micro fuse, 0034.2518, SCHURTER
The 0034.2518 is a medium time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material tube glass
- Material endcaps copper alloy nickel-plated
- Medium-time-lag
- Suitable for fuseholder/clips
- High breaking capacity
- Cartridge model
Technical specifications
| Ausführung | Feinsicherung | |
| Auslösecharakteristik | M | |
| Ausschaltvermögen | 1 kA | |
| Bauform | 5 x 20 mm | |
| Durchmesser | 5 mm | |
| Gehäuse | Glasrohr | |
| Länge | 20 mm | |
| Nennspannung (AC) | 250 V | |
| Nennspannung (DC) | 125 V | |
| Nennstrom | 1.6 A |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85361010 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
