0034.5604.11 | SCHURTER

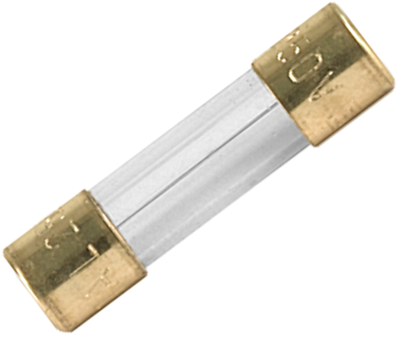

Microfuses 5 x 20 mm, 50 mA, T, 250 V (AC), 35 A breaking capacity, 0034.5604.11
Unit Price (€ / pc.)
1.3209 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Total Price:
1.32 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3209 €
10 pcs.
1.1900 €
50 pcs.
1.0829 €
100 pcs.
0.9758 €
*incl. VAT plus shipping costs
**Subject to prior sale
Micro fuse, 0034.5604.11,SCHURTER
The 0034.5604.11 is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material glass tube
- Material endcaps copper alloy gold-plated
- Low breaking capacity
- PCB or SMT mountable
Applications
- Primary protection on SMD PCBs
Technical specifications
| Ausführung | Feinsicherung | |
| Auslösecharakteristik | T | |
| Ausschaltvermögen | 35 A | |
| Bauform | 5 x 20 mm | |
| Durchmesser | 5.2 mm | |
| Gehäuse | Glasrohr | |
| Länge | 20 mm | |
| Nennspannung (AC) | 250 V | |
| Nennstrom | 50 mA |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85361090 |
| Originalverpackung | Blister mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
