0034.5621.11 | SCHURTER
Microfuses 5 x 20 mm, 2.5 A, T, 250 V (AC), 35 A breaking capacity, 0034.5621.11
Unit Price (€ / pc.)
0.4879 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

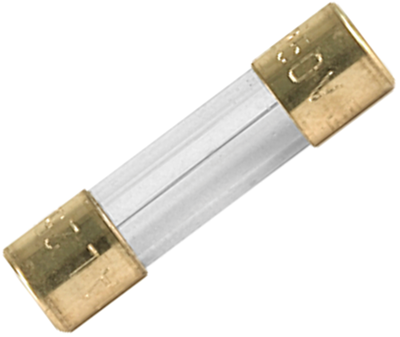

Micro fuse, 0034.5621.11,SCHURTER
The 0034.5621.11 is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material glass tube
- Material endcaps copper alloy gold-plated
- Low breaking capacity
- PCB or SMT mountable
Applications
- Primary protection on SMD PCBs
Technical specifications
| Ausführung | Feinsicherung | |
| Auslösecharakteristik | T | |
| Ausschaltvermögen | 35 A | |
| Bauform | 5 x 20 mm | |
| Durchmesser | 5.2 mm | |
| Gehäuse | Glasrohr | |
| Länge | 20 mm | |
| Nennspannung (AC) | 250 V | |
| Nennstrom | 2.5 A |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85361010 |
| Originalverpackung | Blister mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
