0034.6077 | SCHURTER

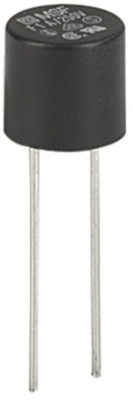

Micro fuse 8.5 x 8.5 mm, 2 A, F, 250 V (AC), 35 A breaking capacity, 0034.6077
Unit Price (€ / pc.)
0.7616 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
0.76 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7616 €
10 pcs.
0.6664 €
50 pcs.
0.6069 €
100 pcs.
0.5474 €
*incl. VAT plus shipping costs
**Subject to prior sale
Micro fuse, 0034.6077, SCHURTER
Directly solderable to printed circuit board and low breaking capacity
Applications:
- Primary protection on printed circuit boards
- Power adapter for e.g. laptops
- SMPS (Switching Mode Power Supply) for TV's and DVD's
Technical specifications
| Version | micro fuse | |
| Tripping characteristics | F | |
| Breaking capacity | 35 A | |
| Design | 8.5 x 8.5 mm | |
| diameter | 8.5 mm | |
| Height | 8.5 mm | |
| Rated voltage (AC) | 250 V | |
| Rated current | 2 A |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85361010 |
| MSL | MSL 1 |
| Original Packaging | Reel with 750 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
