0034.6917 | SCHURTER
Micro fuse 8.5 x 8.5 mm, 1.6 A, T, 250 V (AC), 100 A breaking capacity, 0034.6917
Unit Price (€ / pc.)
0.5712 € *
Available: 709 pcs.
Leadtime: 7 Weeks **
Total Price:
0.57 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5712 €
10 pcs.
0.5117 €
100 pcs.
0.4403 €
500 pcs.
0.3927 €
1000 pcs.
0.3570 €
*incl. VAT plus shipping costs
**Subject to prior sale

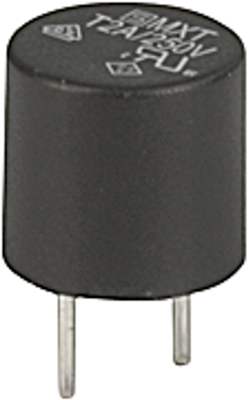

Micro fuse, 0034.6917,SCHURTER
The 0034.6917 is a subminiature time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material thermoplastic
- Material terminals copper tin-plated
- High breaking capacity
- PCB or THT mountable
Applications
- Primary protection on PCBs
- Power supply adapter
- SMPS (Switching Mode Power Supply) for TV's and DVD's
Technical specifications
| Ausführung | Kleinstsicherung | |
| Auslösecharakteristik | T | |
| Ausschaltvermögen | 100 A | |
| Bauform | 8,5 x 8,5 mm | |
| Durchmesser | 8.5 mm | |
| Höhe | 8.5 mm | |
| Nennspannung (AC) | 250 V | |
| Nennstrom | 1.6 A |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85361010 |
| Originalverpackung | Beutel mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
