0034.6985 | SCHURTER

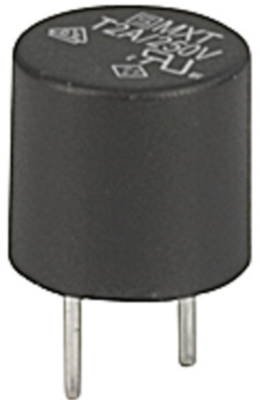

Micro fuse 8.5 x 8.5 mm, 10 A, T, 250 V (AC), 100 A breaking capacity, 0034.6985
Unit Price (€ / pc.)
0.6545 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
0.65 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6545 €
10 pcs.
0.5712 €
50 pcs.
0.5236 €
100 pcs.
0.4641 €
*incl. VAT plus shipping costs
**Subject to prior sale
Subminiature fuse, 0034.6985, Schurter
Subminiature Fuse, 8.5 mm, Time-Lag T, 250 VAC, 100 A
Features
- Directly solderable on printed circuit boards
- High breaking capacity
Applications
- Primary Protection on PCB
- Power Supply Adapter for e.g. laptops
- SMPS (Switching Mode Power Supply) for TV's and DVD's
Technical specifications
| Ausführung | Kleinstsicherung | |
| Auslösecharakteristik | T | |
| Ausschaltvermögen | 100 A | |
| Bauform | 8,5 x 8,5 mm | |
| Durchmesser | 8.5 mm | |
| Höhe | 8.5 mm | |
| Nennspannung (AC) | 250 V | |
| Nennstrom | 10 A |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85361010 |
| MSL | MSL 1 |
| Originalverpackung | Rolle mit 750 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
