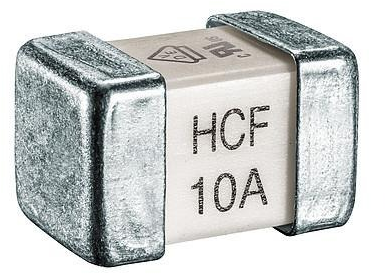

SMD-Fuse SMD 3320, 10 A, F, 125 V (DC), 125 V (AC), 200 A breaking capacity, 3-101-051
Unit Price (€ / pc.)
87.2389 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
SMD-Fuse, 3-101-051, SCHURTER
The 3-101-051 is a SMT quick-acting miniature fuse and it is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material glass tube
- Material terminals copper alloy, tin-plated
- High breaking capacity up to 1000 A
- Sealed and robust construction
Applications
- Applications where high reliability and availability is needed
- Avionics
- Medical equipment
- Defense
- Offshore
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 200 A | |
| Bauform | SMD 3320 | |
| Breite | 5 mm | |
| Gehäuse | SMD | |
| Höhe | 5 mm | |
| Länge | 8.05 mm | |
| Nennspannung (AC) | 125 V | |
| Nennspannung (DC) | 125 V | |
| Nennstrom | 10 A |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85361050 |
| MSL | MSL 1 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
