3-139-127 | SCHURTER
SMD-Fuse 11.4 x 10.2 mm, 70 A, F, 80 V (DC), 3 kA breaking capacity, 3-139-127
Unit Price (€ / pc.)
5.9381 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
5.94 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9381 €
10 pcs.
5.3312 €
50 pcs.
4.9028 €
100 pcs.
4.4149 €
*incl. VAT plus shipping costs
**Subject to prior sale

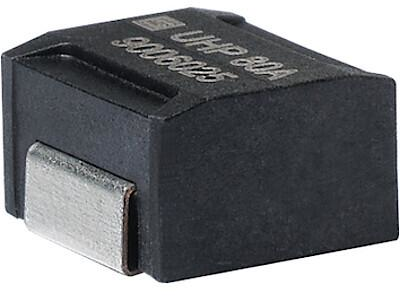

SMD fuse, 3-139-127, SCHURTER
This fuse was specially developed for SELV applications with high rated currents for highest breaking capacity demands. Thanks to its design, the fuses tripping time minimizes excessive temperature dissipation at 2x rated current.
Features
- Safe tripping in 15 s at twice the rated current
- High range of operating temperature
Applications
- Automotive
- Datacenter appliances
- Telecom equipment
- Power tools
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 3 kA | |
| Bauform | 11,4 x 10,2 mm | |
| Breite | 10.2 mm | |
| Gehäuse | SMD | |
| Höhe | 6.77 mm | |
| Länge | 11.4 mm | |
| Nennspannung (DC) | 80 V | |
| Nennstrom | 70 A |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85361090 |
| Originalverpackung | Rolle mit 500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
