3-140-169 | SCHURTER

SMD-Fuse 8.4 x 9.4 mm, 60 A, F, 32 V (DC), 2000 A breaking capacity, 3-140-169

Order No.: 59P0858
EAN: 4099891558413
MPN:
3-140-169
Series: UHS
SCHURTER
3-140-169 SCHURTER Micro Fuses

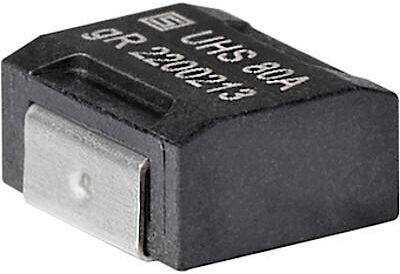

Image may differ
Unit Price (€ / pc.)
0.4165 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Total Price:
0.42 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.4165 €

UHS Fuse, 3-140-169, SCHURTER

This fuse was specially developed for SELV applications with high rated currents for highest breaking capacity demands. Thanks to ist design, the fuses tripping time minimizes excessive temperature dissipation at 2x rated current.

Features

  • Safe tripping in 10s at twice the rated current
  • High range of operating temperature -55 °C bis 125 °C
  • Small component height of 4.7 mm

Applications

  • Automotive
  • Telecom equipment
  • Datacenter appliances
  • Power tools
Technical specifications
Version SMD-Fuse
Tripping characteristics F
Breaking capacity 2000 A
Design 8.4 x 9.4 mm
Width 8.4 mm
Enclosure SMD
Height 4.7 mm
Length 9.4 mm
Rated voltage (DC) 32 V
Rated current 60 A
Logistics
Country of origin CH
Customs tariff number 85361050
Original Packaging Bag with 100 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
