3-140-172 | SCHURTER

SMD-Fuse 8.4 x 9.4 mm, 70 A, F, 50 V (DC), 2000 A breaking capacity, 3-140-172

Order No.: 59P0861
EAN: 4099891558444
MPN:
3-140-172
Series: UHS
SCHURTER

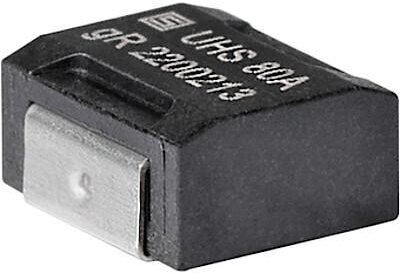

3-140-172 SCHURTER Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.8687 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Total Price:
0.87 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8687 €
10 pcs.
0.7854 €
50 pcs.
0.7140 €
100 pcs.
0.6426 €
*incl. VAT plus shipping costs
**Subject to prior sale

UHS Fuse, 3-140-172, SCHURTER

This fuse was specially developed for SELV applications with high rated currents for highest breaking capacity demands. Thanks to ist design, the fuses tripping time minimizes excessive temperature dissipation at 2x rated current.

Features

  • Safe tripping in 10s at twice the rated current
  • High range of operating temperature -55 °C bis 125 °C
  • Small component height of 4.7 mm

Applications

  • Automotive
  • Telecom equipment
  • Datacenter appliances
  • Power tools
Technical specifications
Version SMD-Fuse
Tripping characteristics F
Breaking capacity 2000 A
Design 8.4 x 9.4 mm
Width 8.4 mm
Enclosure SMD
Height 4.7 mm
Length 9.4 mm
Rated voltage (DC) 50 V
Rated current 70 A
Logistics
Country of origin CH
Customs tariff number 85361090
Original Packaging Reel with 1,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
