3-140-174 | SCHURTER
SMD-Fuse 8.4 x 9.4 mm, 80 A, F, 50 V (DC), 2000 A breaking capacity, 3-140-174
Unit Price (€ / pc.)
0.8687 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
0.87 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8687 €
10 pcs.
0.7854 €
50 pcs.
0.7140 €
100 pcs.
0.6426 €
*incl. VAT plus shipping costs
**Subject to prior sale

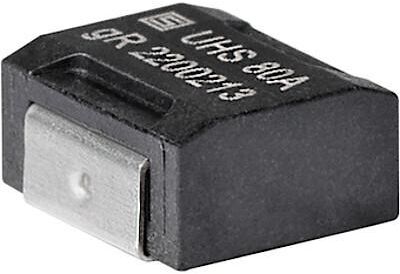

UHS Fuse, 3-140-174, SCHURTER
This fuse was specially developed for SELV applications with high rated currents for highest breaking capacity demands. Thanks to ist design, the fuses tripping time minimizes excessive temperature dissipation at 2x rated current.
Features
- Safe tripping in 10s at twice the rated current
- High range of operating temperature -55 °C bis 125 °C
- Small component height of 4.7 mm
Applications
- Automotive
- Telecom equipment
- Datacenter appliances
- Power tools
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 2000 A | |
| Bauform | 8,4 x 9,4 mm | |
| Breite | 8.4 mm | |
| Gehäuse | SMD | |
| Höhe | 4.7 mm | |
| Länge | 9.4 mm | |
| Nennspannung (DC) | 50 V | |
| Nennstrom | 80 A |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85361090 |
| Originalverpackung | Rolle mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
