SMD-Fuse 7.4 x 3.1 mm, 1 A, F, 63 V (DC), 63 V (AC), 50 A breaking capacity, 3402.0009.22
Unit Price (€ / pc.)
0.7616 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
0.76 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7616 €
10 pcs.
0.6902 €
50 pcs.
0.6188 €
100 pcs.
0.5474 €
*incl. VAT plus shipping costs
**Subject to prior sale

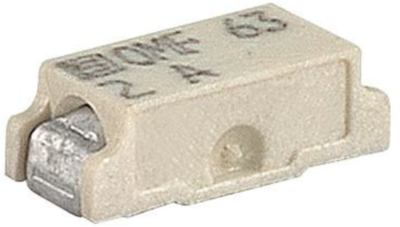

SMD-Fuse, 3402.0009.22, SCHURTER
The 3402.0009.22 is a SMT fuse. It is a quick-acting fuse and can be directly solderable on printed circuit boards.
Features
- Material housing thermoplastic
- Material terminals copper alloy, tin-plated
- Suitable for reflow and wave soldering
- Vibration resistant
Applications
- PCBs
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 50 A | |
| Bauform | 7,4 x 3,1 mm | |
| Breite | 3.1 mm | |
| Gehäuse | SMD | |
| Höhe | 2.6 mm | |
| Länge | 7.4 mm | |
| Nennspannung (AC) | 63 V | |
| Nennspannung (DC) | 63 V | |
| Nennstrom | 1 A |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85361010 |
| MSL | MSL 1 |
| Originalverpackung | Rolle mit 750 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
