3403.0013.11 | SCHURTER

SMD-Fuse 11 x 4.6 mm, 500 mA, F, 250 V (DC), 250 V (AC), 100 A breaking capacity, 3403.0013.11

Order No.: 50G302
EAN: 4099889093506
MPN:
3403.0013.11
Series: OMF 250
SCHURTER
3403.0013.11 SCHURTER Micro Fuses

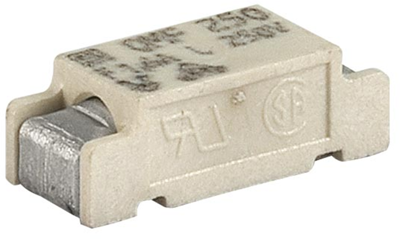

Image may differ
Unit Price (€ / pc.)
0.4403 € *
Available: 490 pcs.
Leadtime: 7 Weeks **
Total Price:
0.44 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.4403 €

SMD-Fuse, 3403.0013.11,SCHURTER

The 3403.0013.11 is a quick-acting surface mount fuse with that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.

Features

  • Material thermoplastic
  • Material terminals copper alloy tin-plated
  • High breaking capacity
  • PCB or SMT mountable
Technical specifications
Version SMD-Fuse
Tripping characteristics F
Breaking capacity 100 A
Design 11 x 4.6 mm
Width 4.6 mm
Enclosure SMD
Height 3.9 mm
Length 11 mm
Rated voltage (AC) 250 V
Rated voltage (DC) 250 V
Rated current 500 mA
Logistics
Country of origin CH
Customs tariff number 85361010
Original Packaging Bag with 100 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
