3403.0166.11 | SCHURTER

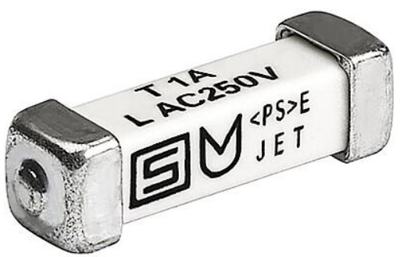

SMD-Fuse 3 x 10.1 mm, 1 A, T, 125 V (DC), 250 V (AC), 200 A breaking capacity, 3403.0166.11
Unit Price (€ / pc.)
0.3689 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
SMD-Fuse, 3403.0166.11,SCHURTER
The 3403.0166.11 is a time-lag surface mount fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material ceramic
- Material terminals copper alloy tin-plated
- High breaking capacity
- PCB or SMT mountable
Applications
- Primary protection on SMD PCBs
- Medical equipment
- Battery protection
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | T | |
| Ausschaltvermögen | 200 A | |
| Bauform | 3 x 10,1 mm | |
| Breite | 3 mm | |
| Gehäuse | SMD | |
| Höhe | 3 mm | |
| Länge | 10.1 mm | |
| Nennspannung (AC) | 250 V | |
| Nennspannung (DC) | 125 V | |
| Nennstrom | 1 A |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85361010 |
| Originalverpackung | Blister mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
