SMD-Fuse 7.4 x 3.1 mm, 3 A, F, 125 V (DC), 125 V (AC), 100 A breaking capacity, 3404.0014.11
Unit Price (€ / pc.)
0.4046 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

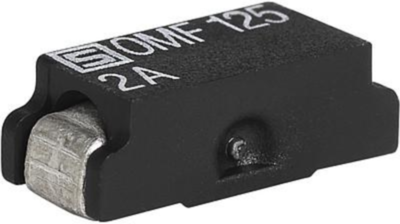

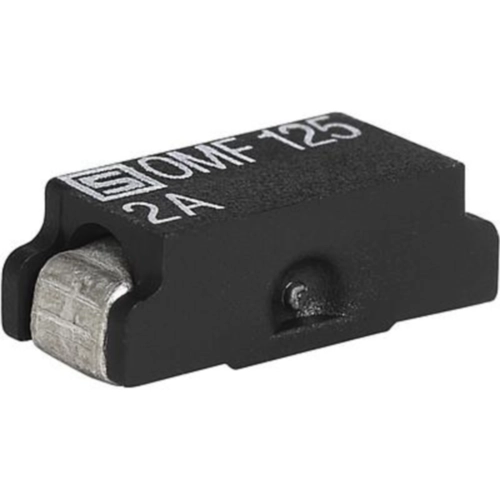

SMD-Fuse, 3404.0014.11, SCHURTER
The 3404.0014.11 is a quick-acting fuse that is designed to protect less sensitive components and are also is used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material housing thermoplastic
- Material terminals copper alloy, tin-plated
- Suitable for reflow and wave soldering
- Vibration resistant
Applications
- Primary protection on SMD PCB-s
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 100 A | |
| Bauform | 7,4 x 3,1 mm | |
| Breite | 3.1 mm | |
| Gehäuse | SMD | |
| Höhe | 2.6 mm | |
| Länge | 7.4 mm | |
| Nennspannung (AC) | 125 V | |
| Nennspannung (DC) | 125 V | |
| Nennstrom | 3 A |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85361010 |
| MSL | MSL 1 |
| Originalverpackung | Rolle mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
