3404.0116.22 | SCHURTER

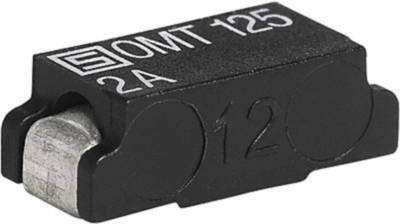

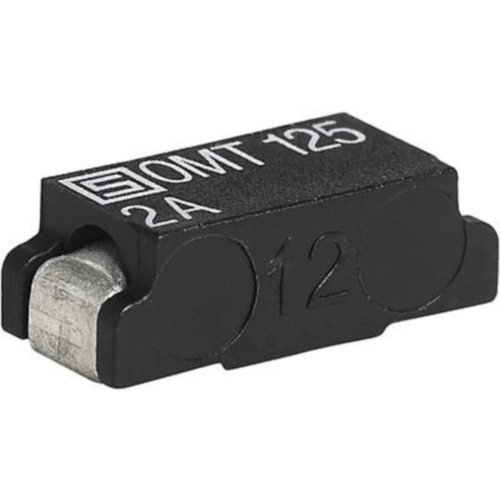

SMD-Fuse 7.4 x 3.1 mm, 2 A, T, 125 V (DC), 125 V (AC), 100 A breaking capacity, 3404.0116.22
Unit Price (€ / pc.)
0.7973 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
0.80 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7973 €
10 pcs.
0.7140 €
50 pcs.
0.6426 €
100 pcs.
0.5712 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD-Fuse, 3404.0116.22, SCHURTER
The 3404.0116.22 is a suitable for capacitive circuits that need power surges upon power input/output or on/off.
Features
- Material housing thermoplastic
- Material terminals copper alloy, tin-plated
- Suitable for reflow and wave soldering
- Vibration resistant
Applications
- Primary protection on motor circuits
Technical specifications
| Version | SMD-Fuse | |
| Tripping characteristics | T | |
| Breaking capacity | 100 A | |
| Design | 7.4 x 3.1 mm | |
| Width | 3.1 mm | |
| Enclosure | SMD | |
| Height | 2.6 mm | |
| Length | 7.4 mm | |
| Rated voltage (AC) | 125 V | |
| Rated voltage (DC) | 125 V | |
| Rated current | 2 A |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85361010 |
| MSL | MSL 1 |
| Original Packaging | Reel with 750 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
