3404.2411.22 | SCHURTER
SMD-Fuse 4.2 x 11.1 mm, 315 mA, T, 250 V (DC), 125 V (AC), 200 A breaking capacity, 3404.2411.22
Unit Price (€ / pc.)
0.8568 € *
Available: 0 pcs.
Leadtime: 9 Weeks **

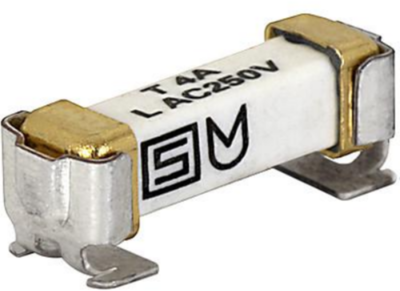

SMD-Fuse, 3404.2411.22, SCHURTER
The 3404.2411.22 is a SMT time-lag fuse with clips, and it is used for overcurrent protection applications.
Features
- Material glass tube
- Material terminals copper alloy tin-plated
- Suitable for reflow soldering
- High breaking capacity of 200 A
Applications
- Primary protection on SMD PCB-s
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | T | |
| Ausschaltvermögen | 200 A | |
| Bauform | 4,2 x 11,1 mm | |
| Breite | 4.2 mm | |
| Gehäuse | SMD | |
| Höhe | 4 mm | |
| Länge | 11.3 mm | |
| Nennspannung (AC) | 125 V | |
| Nennspannung (DC) | 250 V | |
| Nennstrom | 315 mA |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85363010 |
| Originalverpackung | Blister mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
