3404.2417.11 | SCHURTER

SMD-Fuse 4.2 x 11.1 mm, 1.25 A, T, 250 V (DC), 125 V (AC), 200 A breaking capacity, 3404.2417.11

Order No.: 50G671
EAN: 4099889094367
MPN:
3404.2417.11
Series: UMZ 250
SCHURTER
3404.2417.11 SCHURTER Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.714 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
0.71 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.714 €

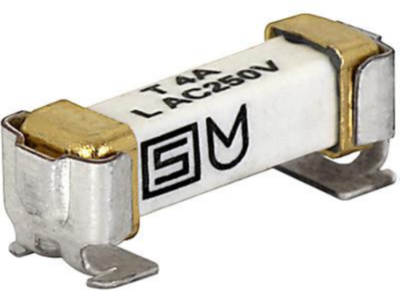

SMD-Fuse, 3404.2417.11, SCHURTER

The 3404.2417.11 is a SMT time-lag fuse with clips, and it is used for overcurrent protection applications.

Features

  • Material glass tube
  • Material terminals copper alloy tin-plated
  • Suitable for reflow soldering
  • High breaking capacity of 200 A

Applications

  • Primary protection on SMD PCB-s
Technical specifications
Version SMD-Fuse
Tripping characteristics T
Breaking capacity 200 A
Design 4.2 x 11.1 mm
Width 4.2 mm
Enclosure SMD
Height 4 mm
Length 11.3 mm
Rated voltage (AC) 125 V
Rated voltage (DC) 250 V
Rated current 1.25 A
Logistics
Country of origin CH
Customs tariff number 85363010
Original Packaging Blister with 100 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
