3412.0114.11 | SCHURTER
SMD-Fuse 1.6 x 0.8 mm, 750 mA, FF, 63 V (DC), 32 V (AC), 50 A breaking capacity, 3412.0114.11
Unit Price (€ / pc.)
0.3332 € *
Available: 0 pcs.
Leadtime: 17 Weeks **

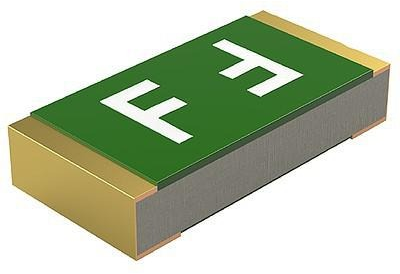

SMD-Fuse, 3412.0114.11, SCHURTER
The 3412.0114.11 is a SMT super quick-acting fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material housing epoxyd glass
- Material terminals Ni/Sn
- Low melting I²t-values, fast interruption
Applications
- Secondary protection DC and AC
- Circuits without inrush
- Semiconductor protection
Technical specifications
| Version | SMD-Fuse | |
| Tripping characteristics | FF | |
| Breaking capacity | 50 A | |
| Design | 1.6 x 0.8 mm | |
| Width | 0.8 mm | |
| Enclosure | SMD 0603 | |
| Height | 0.6 mm | |
| Length | 1.6 mm | |
| Rated voltage (AC) | 32 V | |
| Rated voltage (DC) | 63 V | |
| Rated current | 750 mA |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85361010 |
| MSL | MSL 1 |
| Original Packaging | Blister with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
