3412.0115.22 | SCHURTER

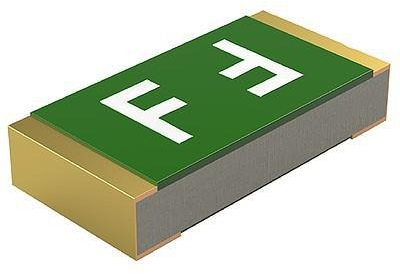

SMD-Fuse 1.6 x 0.8 mm, 1 A, FF, 63 V (DC), 32 V (AC), 50 A breaking capacity, 3412.0115.22
Unit Price (€ / pc.)
0.5831 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
0.58 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5831 €
10 pcs.
0.5117 €
50 pcs.
0.4641 €
100 pcs.
0.4165 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD-Fuse, 3412.0115.22, SCHURTER
The 3412.0115.22 is a SMT super quick-acting fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material housing epoxyd glass
- Material terminals Ni/Sn
- Low melting I²t-values, fast interruption
Applications
- Secondary protection DC and AC
- Circuits without inrush
- Semiconductor protection
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | FF | |
| Ausschaltvermögen | 50 A | |
| Bauform | 1,6 x 0,8 mm | |
| Breite | 0.8 mm | |
| Gehäuse | SMD 0603 | |
| Höhe | 0.6 mm | |
| Länge | 1.6 mm | |
| Nennspannung (AC) | 32 V | |
| Nennspannung (DC) | 63 V | |
| Nennstrom | 1 A |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85361010 |
| MSL | MSL 1 |
| Originalverpackung | Blister mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
