3412.0122.11 | SCHURTER
SMD-Fuse 1.6 x 0.8 mm, 3.5 A, FF, 32 V (DC), 32 V (AC), 50 A breaking capacity, 3412.0122.11
Unit Price (€ / pc.)
0.3332 € *
Available: 0 pcs.
Leadtime: 16 Weeks **

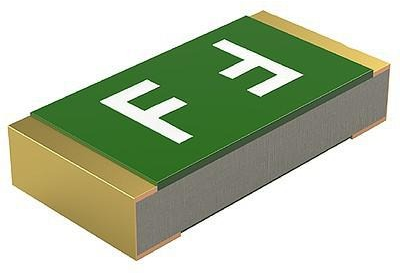

SMD-Fuse, 3412.0122.11, SCHURTER
The 3412.0122.11 is a SMT super quick-acting fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material housing epoxyd glass
- Material terminals Ni/Sn
- Low melting I²t-values, fast interruption
Applications
- Secondary protection DC and AC
- Circuits without inrush
- Semiconductor protection
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | FF | |
| Ausschaltvermögen | 50 A | |
| Bauform | 1,6 x 0,8 mm | |
| Breite | 0.8 mm | |
| Gehäuse | SMD 0603 | |
| Höhe | 0.6 mm | |
| Länge | 1.6 mm | |
| Nennspannung (AC) | 32 V | |
| Nennspannung (DC) | 32 V | |
| Nennstrom | 3.5 A |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85361010 |
| Originalverpackung | Blister mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
