3413.0117.22 | SCHURTER

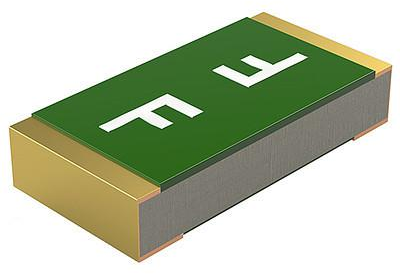

SMD-Fuse 3.2 x 1.6 mm, 1.5 A, FF, 63 V (DC), 32 V (AC), 50 A breaking capacity, 3413.0117.22
Unit Price (€ / pc.)
0.5117 € *
Available: 1,935 pcs.
Leadtime: 15 Weeks **
Total Price:
5.12 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5117 €
50 pcs.
0.4641 €
100 pcs.
0.4284 €
1000 pcs.
0.3689 €
2000 pcs.
0.3332 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD-Fuse, 3413.0117.22,SCHURTER
The 3413.0117.22 is a super quick-acting surface mount fuse with that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material housing fiber-reinforced plastic
- Material terminals copper Ni/Au-plated
- High breaking capacity
- PCB or SMT mountable
Applications
- Secondary protection DC and AC
- Circuits without inrush
- Semiconductor protection
Technical specifications
| Version | SMD-Fuse | |
| Tripping characteristics | FF | |
| Breaking capacity | 50 A | |
| Design | 3.2 x 1.6 mm | |
| Width | 1.6 mm | |
| Enclosure | SMD 1206 | |
| Height | 0.6 mm | |
| Length | 3.2 mm | |
| Rated voltage (AC) | 32 V | |
| Rated voltage (DC) | 63 V | |
| Rated current | 1.5 A |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85361010 |
| Original Packaging | Blister with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
