3413.0332.22 | SCHURTER

SMD-Fuse 3.2 x 1.6 mm, 25 A, T, 63 V (DC), 32 V (AC), 100 A breaking capacity, 3413.0332.22

Order No.: 59P5200
EAN: 4099889112498
MPN:
3413.0332.22
Series: UST 1206
SCHURTER

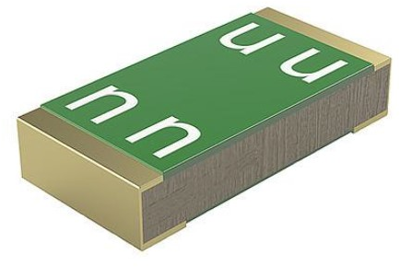

3413.0332.22 SCHURTER Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.7735 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Total Price:
0.77 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7735 €
10 pcs.
0.7021 €
50 pcs.
0.6307 €
100 pcs.
0.5474 €
*incl. VAT plus shipping costs
**Subject to prior sale

SMD-Fuse, 3413.0332.22, SCHURTER

The 3413.0332.22 is a SMD time-lag fuse that is suitable for capacitive circuits that need power surges upon power input/output or on/off.

Features

  • Material housing epoxyd glass
  • Material terminals copper Ni/Au-plated
  • Suitable for reflow soldering
  • High current ratings

Applications

  • Secondary protection DC and AC
  • Circuits with inrush
  • LCD backlight DC-AC inverter
Technical specifications
Version SMD-Fuse
Tripping characteristics T
Breaking capacity 100 A
Design 3.2 x 1.6 mm
Width 1.6 mm
Enclosure SMD 1206
Height 0.6 mm
Length 3.2 mm
Rated voltage (AC) 32 V
Rated voltage (DC) 63 V
Rated current 25 A
Logistics
Country of origin CH
Customs tariff number 85361050
MSL MSL 1
Original Packaging Blister with 1,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
