3422.0048.11 | SCHURTER
SMD-Fuse 12 x 5.2 mm, 3.15 A, F, 63 V (DC), 63 V (AC), 50 A breaking capacity, 3422.0048.11
Unit Price (€ / pc.)
1.4637 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
SMD-Fuse, 3422.0048.11, SCHURTER

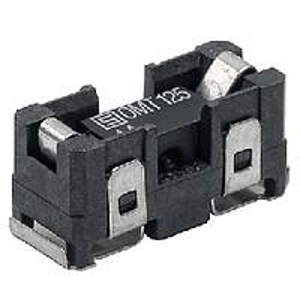

The 3422.0048.11 is a SMT fast-acting fuse with holder that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material housing thermoplastic
- Material terminals copper tin-plated
- Suitable for reflow soldering
- Directly solderable on printed circuit boards
Applications
- PCBs
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 50 A | |
| Bauform | 12 x 5,2 mm | |
| Breite | 5.2 mm | |
| Gehäuse | SMD | |
| Höhe | 6 mm | |
| Länge | 12 mm | |
| Nennspannung (AC) | 63 V | |
| Nennspannung (DC) | 63 V | |
| Nennstrom | 3.15 A |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85361010 |
| MSL | MSL 1 |
| Originalverpackung | Blister mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
