7010.3520 | SCHURTER

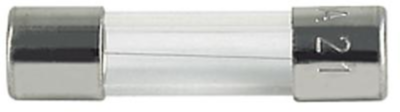

Microfuse 5 x 20 mm, 8 A, F, 32 V (AC), 300 A breaking capacity, 7010.3520
Unit Price (€ / pc.)
0.4046 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Micro fuse, 7010.3520, SCHURTER
The 7010.3520 is a quick-acting miniature fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material glass tube
- Material endcaps copper alloy nickel-plated
- Suitable for mounting in fuseholder / clip
- Low breaking capacity
Technical specifications
| Ausführung | Feinsicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 300 A | |
| Bauform | 5 x 20 mm | |
| Durchmesser | 5 mm | |
| Gehäuse | Glasrohr | |
| Länge | 20 mm | |
| Nennspannung (AC) | 32 V | |
| Nennstrom | 8 A |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85361010 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
