7010.9770.57 | SCHURTER
Microfuse 7 x 2 mm, 250 mA, F, 125 V (DC), 125 V (AC), 300 A breaking capacity, 7010.9770.57
Unit Price (€ / pc.)
0.4760 € *
Available: 0 pcs.
Leadtime: 21 Weeks **

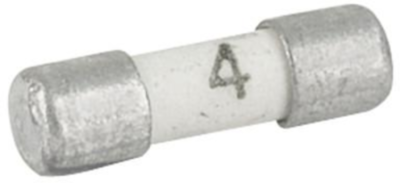

Micro fuse, 7010.9770.57, SCHURTER
The 7010.9770.57 is a SMT quick-acting fuse designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material ceramic tube
- Material endcaps copper alloy tin-plated
- Suitable for reflow and wave soldering
- High breaking capacity
Applications
- Directly solderable on printed circuit boards
- Telecom
- Household appliances
Technical specifications
| Ausführung | Feinsicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 300 A | |
| Bauform | 7 x 2 mm | |
| Durchmesser | 2 mm | |
| Gehäuse | Keramikrohr | |
| Länge | 7 mm | |
| Nennspannung (AC) | 125 V | |
| Nennspannung (DC) | 125 V | |
| Nennstrom | 250 mA |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85361010 |
| MSL | MSL 1 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
