7010.9800.63 | SCHURTER
Microfuse 7 x 2 mm, 750 mA, F, 125 V (DC), 125 V (AC), 300 A breaking capacity, 7010.9800.63
Unit Price (€ / pc.)
0.6307 € *
Available: 47 pcs.
Leadtime: 21 Weeks **
Total Price:
0.63 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6307 €
10 pcs.
0.5831 €
50 pcs.
0.5355 €
100 pcs.
0.4760 €
*incl. VAT plus shipping costs
**Subject to prior sale

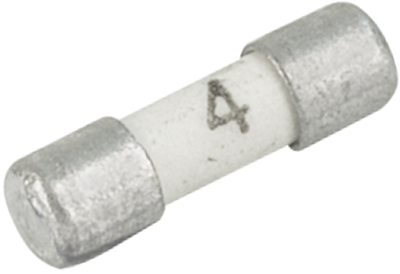

Micro fuse, 7010.9800.63,SCHURTER
The 7010.9800.63 is a quick-acting surface mount fuse with that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material ceramic tube
- Material terminals copper alloy tin-plated
- High breaking capacity
- PCB or SMT mountable
Applications
- Telecom
- Household appliances
Technical specifications
| Ausführung | Feinsicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 300 A | |
| Bauform | 7 x 2 mm | |
| Durchmesser | 2 mm | |
| Gehäuse | Keramikrohr | |
| Länge | 7 mm | |
| Nennspannung (AC) | 125 V | |
| Nennspannung (DC) | 125 V | |
| Nennstrom | 750 mA |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85361010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
