7010.9894.63 | SCHURTER
Microfuses 7 x 2 mm, 12 A, F, 125 V (DC), 125 V (AC), 300 A breaking capacity, 7010.9894.63
Unit Price (€ / pc.)
0.5593 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Micro fuse, 7010.9894.63, SCHURTER

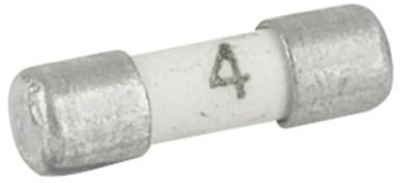

The 7010.9894.63 is a SMT quick-acting fuse designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material ceramic tube
- Material endcaps copper alloy tin-plated
- Suitable for reflow and wave soldering
- High breaking capacity
Applications
- Directly solderable on printed circuit boards
- Telecom
- Household appliances
Technical specifications
| Version | microfuses | |
| Tripping characteristics | F | |
| Breaking capacity | 300 A | |
| Design | 7 x 2 mm | |
| diameter | 2 mm | |
| Enclosure | ceramic tube | |
| Length | 7 mm | |
| Rated voltage (AC) | 125 V | |
| Rated voltage (DC) | 125 V | |
| Rated current | 12 A |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85361010 |
| MSL | MSL 1 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
