7010.9964.63 | SCHURTER
Microfuse 7 x 2 mm, 2.5 A, T, 125 V (DC), 125 V (AC), 50 A breaking capacity, 7010.9964.63
Unit Price (€ / pc.)
0.3689 € *
Available: 0 pcs.
Leadtime: 19 Weeks **

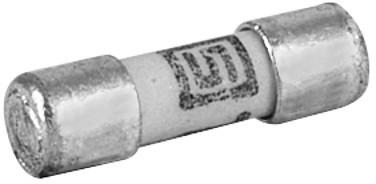

Micro fuse, 7010.9964.63, SCHURTER
The 7010.9964.63 is a SMT time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material terminals tin-plated copper alloy
- Material housing ceramic
- Suitable for reflow and wave soldering
- Low breaking capacity
Applications
- Telecom
- Household appliances
Technical specifications
| Ausführung | Feinsicherung | |
| Auslösecharakteristik | T | |
| Ausschaltvermögen | 50 A | |
| Bauform | 7 x 2 mm | |
| Durchmesser | 2 mm | |
| Gehäuse | Keramikrohr | |
| Länge | 7 mm | |
| Nennspannung (AC) | 125 V | |
| Nennspannung (DC) | 125 V | |
| Nennstrom | 2.5 A |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85361010 |
| MSL | MSL 1 |
| Originalverpackung | Blister mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
