7100.1058.13 | SCHURTER

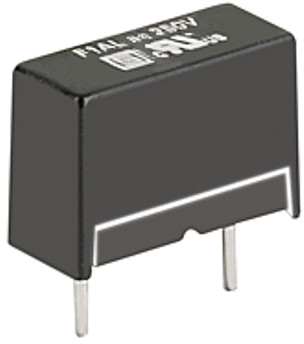

Name: Micro fuse 11.5 x 5 mm, 0.2 A, F, 250 V (AC), 35 A breaking capacity, 7100.1058.13
Brand: SCHURTER
SKU: 59P0987
Price: 0.63 EUR
Availability: OutOfStock

Micro fuse 11.5 x 5 mm, 0.2 A, F, 250 V (AC), 35 A breaking capacity, 7100.1058.13

Order No.: 59P0987

EAN: 4099891558673

MPN:

7100.1058.13

Series: FRT 250F

Image may differ

Key Specification:

Version micro fuse

Design 11.5 x 5 mm

Rated current 0.2 A

Tripping characteristics F

Show 100 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.6307 € *

Available: 0 pcs.

Leadtime: 20 Weeks **

Add to Cart

Total Price:

0.63 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Subminiature fuse, 7100.1058.13, SCHURTER

Subminiature fuse quick-acting F from front side, Short terminal.

Features

Primary protection on PCB
Power supply adapter

Technical specifications

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	IN
Customs tariff number	85361010
Original Packaging	Bag with 100 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
