8020.0603.H | SCHURTER
Microfuses 6.3 x 32 mm, 12 A, T, 100 V (DC), 250 V (AC), 10 kA breaking capacity, 8020.0603.H
Unit Price (€ / pc.)
0.9401 € *
Available: 425 pcs.
Leadtime: 20 Weeks **
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9401 €
10 pcs.
0.8687 €
50 pcs.
0.7854 €
100 pcs.
0.7021 €
*incl. VAT plus shipping costs
**Subject to prior sale

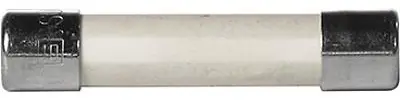

Fuse 6.3 x 32 mm, 8020.0603.H, SCHURTER
Robust 6.3x32 fuse for high power and inrush current requirements.
Technical specifications
| Version | microfuses | |
| Tripping characteristics | T | |
| Breaking capacity | 10 kA | |

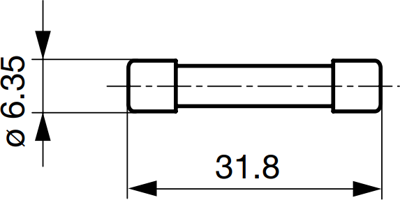

| Design | 6.3 x 32 mm | |
| diameter | 6.35 mm | |
| Enclosure | ceramic tube | |
| Length | 31.8 mm | |
| Rated voltage (AC) | 250 V | |
| Rated voltage (DC) | 100 V | |
| Rated current | 12 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85361050 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
