8020.5018 | SCHURTER
Microfuse 6.3 x 32 mm, 5 A, T, 400 V (DC), 500 V (AC), 1.5 kA breaking capacity, 8020.5018
Unit Price (€ / pc.)
0.3927 € *
Available: 0 pcs.
Leadtime: 9 Weeks **

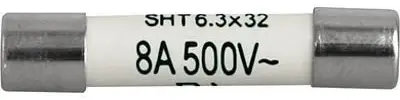

Micro fuse, 8020.5018, SCHURTER
The 8020.5018 is a time-lag cartridge fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material tube ceramic
- Material endcaps copper alloy nickel-plated
- Time-lag
- High breaking capacity
Applications
- Single-phase application
- DC application
- Photovoltaic
- Frequency converter
- Power electronics
Technical specifications
| Ausführung | Feinsicherung | |
| Auslösecharakteristik | T | |
| Ausschaltvermögen | 1.5 kA | |
| Bauform | 6,3 x 32 mm | |
| Durchmesser | 6.35 mm | |
| Gehäuse | Keramikrohr | |
| Länge | 31.8 mm | |
| Nennspannung (AC) | 500 V | |
| Nennspannung (DC) | 400 V | |
| Nennstrom | 5 A |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85361010 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
