8020.5024 | SCHURTER
Microfuses 6.3 x 32 mm, 20 A, T, 63 V (DC), 400 V (AC), 1.5 kA breaking capacity, 8020.5024
Unit Price (€ / pc.)
1.0115 € *
Available: 737 pcs.
Leadtime: 20 Weeks **
Total Price:
1.01 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0115 €
10 pcs.
0.9163 €
50 pcs.
0.8330 €
100 pcs.
0.7497 €
*incl. VAT plus shipping costs
**Subject to prior sale

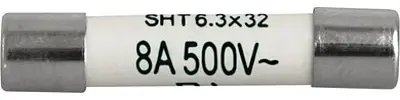

Micro fuse, 8020.5024, SCHURTER
The 8020.5024 is a time-lag cartridge fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material ceramic tube
- Material endcaps brass nickel-plated
- Material filler sand
- Low resistance
Applications
- Single-phase high current applications up to 30 A
- DC applications
- Frequency converter
- Power electronics
- Commercial cooking appliances
- Photovoltaic
Technical specifications
| Version | microfuses | |
| Tripping characteristics | T | |
| Breaking capacity | 1.5 kA | |
| Design | 6.3 x 32 mm | |
| diameter | 6.35 mm | |
| Enclosure | ceramic tube | |
| Length | 31.8 mm | |
| Rated voltage (AC) | 400 V | |
| Rated voltage (DC) | 63 V | |
| Rated current | 20 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85361050 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
